Roots Enviro Systems Private Limited
In the year 2007, the foundation of ROOTS ENVIRO SYSTEMS was laid down. Since then, the company has never looked back. Under the able guidance of the honourable Director, with the help of dedication and brilliance of its team has emerged as a leader in the market of air management systems and equipments. ROOTS ENVIRO SYSTEMS, an ISO 9001-2008 certified company, has always responded to the need of the time. It is a well known name in air management systems providers. The company adopted a deep insight into design and selection of various air management systems and equipments with a broad vision to provide high quality products and optimum level of customer satisfaction. Incorporated in 2007, ROOTS ENVIRO has developed world class manufacturing facilities at Kolkata (West Bengal). Its plant is spread over an area of 1,50,000 sq. ft. & is equipped with plant and machinery with the latest technology to produce consistently high quality, cost effective and energy efficient air management systems to cater the multiple needs of customers. We produce our Air Handling Unit as per international norms.
Read MoreAbout Us
Who we are
Roots Enviro Systems is a designer and supplier of air pollution control systems, air cooling and air ventilation systems, covering the full range of toxic, regulated and nuisance air pollutants. Roots Enviro System is run by engineers having more than 30 years of experience. The years of experience of engineering brings know-how to the table, plus common sense and acute cost awareness. Our main mission is to clean air at a minimal cost for our clients
Roots Enviro Systems is a growing company to provide innovative solutions in the area of industrial air ventilation, treatment, maintenance, monitoring and environmental and social information management. Our team comprises of innovative and higly experienced engineers and dedicated management body
What we do
We are fully equipped to undertake the projects in the following fields:
- » Air Pollution Control Systems
- » Flue Gas Treatment
- » Dry & Wet Scrubbers
- » Mist Eliminators/Particulate Removal
- » Air Ventilation Systems
- » Natural Ventilation / Roof Ventilation
- » Forced Draft Ventilation
Codes and Standards followed :
As per IS standards. Best engineering practices are routinely adopted.
OUR MOTTO: “TIMELY SUPPLY, BEST QUALITY AND OPTIMUM COST”
We are one of the Limited Capable Vendors in the country to take up the aforesaid jobs of big projects in India & abroad.
We are extremely keen to be associated with your organization and request you to kindly register us as a prospective vendor for the above stated systems.
We shall be honored to receive your specific enquiries and assure you of prompt & personalized attention all the times.
How RES Works ?
Roots Enviro Systems Private Limited
We take this opportunity to introduce ourselves, M/S. Roots Enviro Systems Pvt. Ltd. The company was founded in the year 2007, as an unit to cater the requirements of industry for a better environment in the working area and safeguard the working force by providing pollution free environment and working comfort. The company is into turnkey contracting for Industrial Ventilation and Pollution control fields as well. The company has its offices at Kolkata and Noida and at different sites, as required.
The Managing Director of the company has a vast experience of 40 years in the field of industrial ventilation and A/C Systems and executed successfully innumerable major projects during his service carrier all over India.
M/s. Roots Enviro Systems Pvt. Ltd. has entered in a Joint agreement with M/S. THOLANDER Ablufttechnik Gmbh, Germany to solve Air pollution Control problems i.e. Odour, Inorganic acids, Solvents, Poisonous Gases, Dust, Organic Sulpher Compounds, Hydrogen Sulphide, Aerosoles, Ammonia and solid west management systems.
M/s. Roots Enviro Systems Pvt. Ltd. has entered in a Technical agreement with M/S. Enviroflo Engineering Ltd., U.K. , one of the leading dust control engineers in U.K. and also leaders in Dust foam suppression systems all over the world.
The Scope of Air Handling Equipments & Systems, Bio-filter, Cross flow Scrubber, Counter Current Scrubber, Active Carbon Absorber, Ionizing Scrubber, Waste Gas Collection, Ozone Treatment and Solid Waste Management in the Indian Industry is tremendous as overall awakening towards people worthy environmental atmosphere in the Industry proved to be very useful for better productivity, health of the workmen and life of the machine. Therefore, the company came up with dedicated services to its customers who were quite satisfied with its optimum design and competitive pricing.
It is the privilege of the company that right from the inception, customers of high repute to whom cost was not the matter but a perfect system with good performance was the question opted for the company, and it could provide it all to its valued customers.
The aim of our company is not to accumulate money but to serve the industry in the most economical way by providing better Engineering Services, Better Standard of Equipments and Performances through updated Technologies and Management Principles.
We have opened our office in NOIDA and it will look after the operation in the areas of their respective strength.
Scope (Areas) of Services
We are fully equipped to undertake the projects in the following fields:
- » Industrial Ventilation, Air cooling & A/C. Systems.
- » Pollution Control systems, Solid Waste Management.
- » Bio filter, Cross flow Scrubber, Counter Current Scrubber, Active Carbon Absorber, Ionizing Scrubber, Waste Gas Collection, Ozone Treatment etc.
- » Dust Suppression Systems.
- » Annual maintenance and operation contracts in above areas.
- » Consulting, Design, Supply, Installation, Hardware and Software Planning, Maintenance, Project Management.
- » Civil work.
Latest Tweets
- » Manufacture of Industrial Ventilation & Pollution Control Equipment.
- » Project Execution related to Industrial Ventilation, Air-cooling, A/C. Systems & Air Pollution Control Systems.
- » Manufacturer of components such as centrifugal fans, filters, grilles etc.
- » Annual Maintenance Contracts for Air-cooling, Air-conditioning & Pollution Control Equipment.
- » Modifications in ducts and piping.

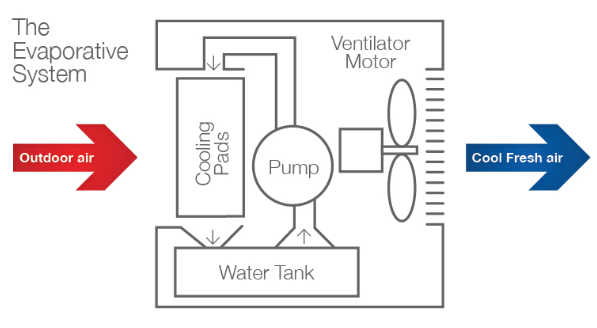

Why Evaporative System?
As water is evaporated, energy is lost from the air, reducing the temperature. Two temperatures are important when dealing with evaporative cooling systems.
When considering water evaporating into air, the wet-bulb temperature, as compared to the air\'s dry-bulb temperature, is a measure of the potential for evaporative cooling. The dry and wet bulb temperature can be used to calculate the relative humidity.
Evaporation will take place when the humidity is below 100% and the air begins to absorb water. Any given volume of air can hold a certain amount of water vapour and the degree of absorption will depend on the amount it is already holding.
The term humidity describes how much water is already in the air; relative to the amount it is capable of holding. Air is saturated when it cannot hold any more water. Imagine it as a sponge, if the sponge held half as much water as it was capable of holding, it would be 50% saturated. In the case of air, we would describe the Relative Humidity as being 50%.
Energy is required to change water from liquid to vapour. This energy is obtained in an adiabatic process from the air itself. Air entering an evaporative air cooler gives up heat energy to evaporate water. During this process, the dry bulb temperature of the air passing through the cooler is lowered
Wet Bulb Temperature
- » This is the lowest temperature that can be reached by the evaporation of water only
Dry Bulb Temperature
- »This is the temperature that we usually think of as air temperature, measured by a regular thermometer exposed to the air stream
News
Current
We have opened our office in the Noida and it will look after the operation in the areas of their respective strength, we are fully equipped to undertake the projects in the following fields:
- » Industrial Ventilation, Air cooling & A/C. Systems
- » Pollution Control systems, Solid Waste Management
- » Bio filter, Cross flow Scrubber, Counter Current Scrubber, Active Carbon Absorber, Ionizing Scrubber, Waste Gas Collection, Ozone Treatment
- » Dust Suppression Systems
- » Annual maintenance and operation contracts in above areas
- » Consulting, Design, Supply, Installation, Hardware and Software Planning, Maintenance, Project Management
- » Civil work

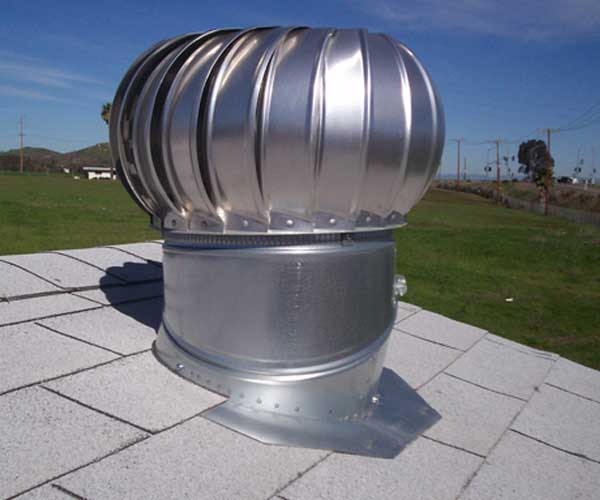

Roof Turbine Ventilator
Roof Turbine Ventilator
Roots Enviro efficient wind driven turbine ventilators exhaust hot and stale air at a given number of air change per hour for the building, warehouse & workshops.
Application : Workshops, Warehouse, Building.
Range: 600 mm to 900 mm.
Centrifugal Fan
Centrifugal Fan
Roots Enviro Centrifugal Fans are available in single inlet single width (SlSW) and double inlet double width (DIDW) design with forward & backward curved, straight, radial or flat backward sloped bladed impeller are highly efficient and are statically and dynamically balanced with low noise level for low, medium and high pressure application.
Application : ID, FD, General Ventilation, etc.
Capacity : 200 CMH to 2,70,000 CMH upto 2000 MMWG static pressure.
Range: 180 mm to 2050 mm
Axial Flow Fan
Axial Flow Fan
Roots Enviro Axial Flow Fans are available in wall mounting / tubular casing design with cast alloy aluminum impellers having fixed or variable pitch angle arrow dynamic blade for direct / V-belt driven arrangement .These high energy efficient fans with static and dynamically balanced impellers ensure low power rating and are ideal for ventilation, fume extraction & exhaust systems.
Application : Power house building, Turbine hall, workshop.
Performance : 500 CMH to 2,00,000 CMH (upto 100 mmwg static pressure)
Range: 300 mm to 1600 mm
Air Flow Devices
Grill

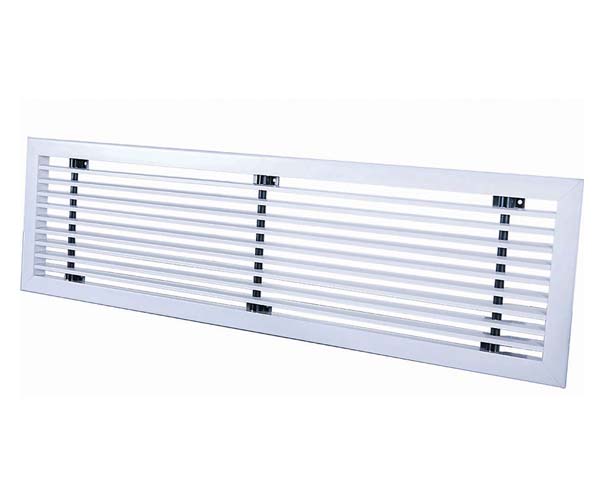

Linear Fixed Bar Air Grills
Air linear bar grills are designed mainly for sidewall, cealing, floor and sill application. Linear bar grills assembled from extruded profiles for supply and return air flow.
The bars are assembled to assure rigidity and maintain straight lines. Horizontal bars on the front and vertical bars on the rear and standard dampers ar provided for control of air flow. It can be choosen from 0°, 15° Two way, 30° one way 45° one way deflections.
Finishes
EPDXY POLYESTER POWDER COATED (BROKEN OFF WHITE/PURE WHITE/IVORY)
Adjustable Louver Double Deflection Air Grills
Air supply and return air grills are made by high quality extrude aluminium profile. Air supply air grills come with individual adjustment front horizontal and rear vertical or front vertical and rear horizontal louvers. Air return air grills come with horizontal or vertical adjustable louvers.
Finishes
EPOXY POLYESTER POWDER COATED (BROKEN OFF WHITE/PURE WHITE/IVORY)

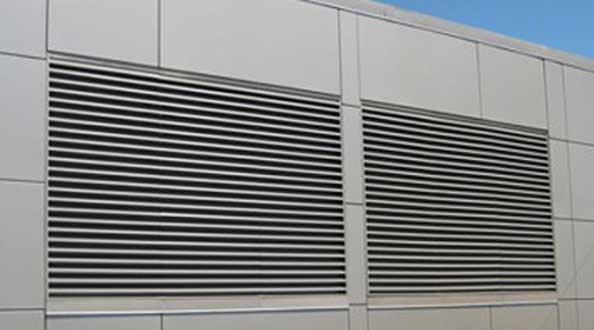

Louvre : Fresh Air Louvers
Louvre : Fresh Air Louvers
Air Control louvers are designed for fresh air intake application. The louver blades are riveted to the main frame by suitable 'L' section. Air Control louvers and dampers constructed from GSS / MS / extruded aluminium profiles.
Dampers

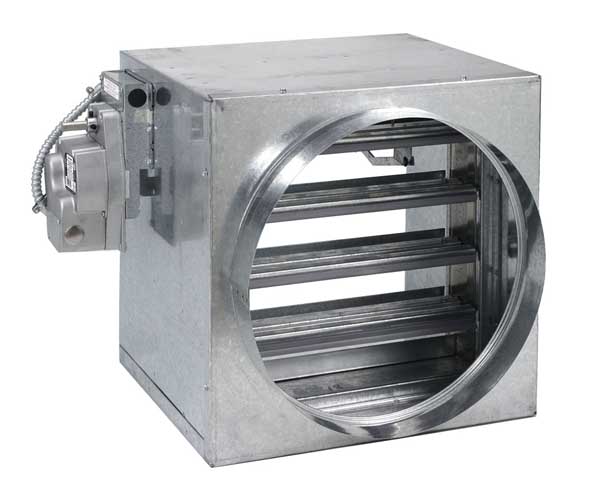

Volume Control Damper
Volume control dampers has been specifically designed to provide positive air control in the ducted HVAC systems. These dampers are available in G.I / Aluminium construction. The blade linkage mechanism is fully enclosed with all operating gear out of ducted airway. Dampers have opposed blade operation and are suitable for many control options.

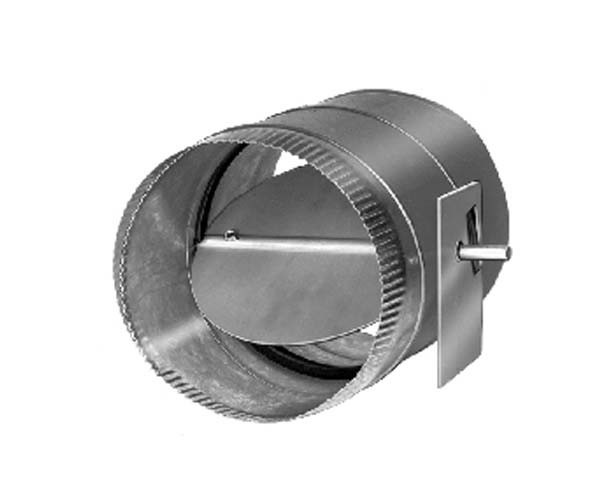

Grill Dampers
Grill damper has been designed to ensure proper regulation of air. The dampers are designed with nylon bushes for efficient, smooth and quiet operation and to avoid rattling noise. Opening mechanism like screw, cam or handle type are available. Standard sizes are also available. However specific sizes can also be provided by us as per customers’ applications.
Finishes
BLADES
(a) EPOXY POLYESTER POWDER COATED (BLACK MATT)
(b) ANODISED (BLACK MATT)
Other powder coating finishes are available on request.

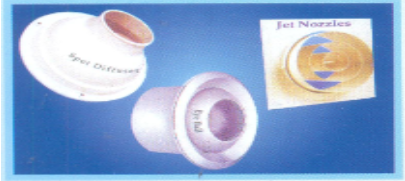

Jet Nozzles - Filters and Diffusers
Introduction
In applications where the air discharge from diffuser has to travel very large distance (viz. shopping malls, Higher ceiling assembly halls) Spot Diffusers or Jet Nozzles are preferred. Air-direction is adjusted by swivel movement of Jet Nozzle/Spot diffusion.
Construction
Aluminium spinnings are secured to flange which is fixed to duct collar or suitable frame.
Salient Features
(l) Facilitates high air quantities an Long throws
(2) Eye ball assembly smoothly rotates in fixed mounting flange-seals prevent leakage.
(3) Clear anodize finish for years of corrosion-resistant performance.
Finishes
Epoxy polyester powder coated / Ivory / Off white.

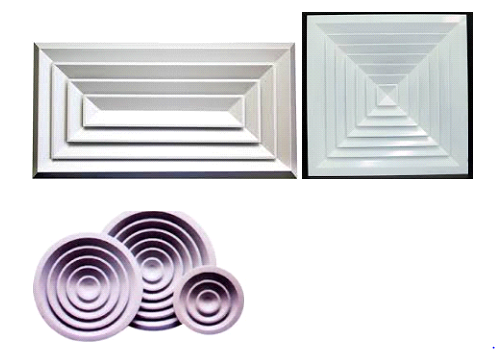

Ceiling Diffusers (Rectangular , Square and circular)
High capacity louvered face directional diffusers designed to supply large volumes of air at relatively low sound level and pressure drops.
Finishes
EPOXY POLYESTER POWDER COATED (BROKEN OFF WHITE/PURE WHITE/IVORY)

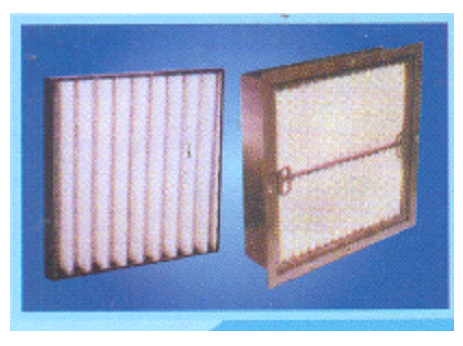

Fresh Air Filters (G.I / Aluminium)
Construction
Frame is made of Aluminium / Mild – Steel duly enamel painted.
Filter element consists of high loft synthetic non – woven media supported by HDPE mesh on both side.
Element is supported by spacers to ensure strength and uniform air flow.
Application
Air handling units , package unit , Air washers and General Pre – filtration.
| Description | Normal Size L × W × H | Rate Capacity at 5 mm WG | |
|---|---|---|---|
| (mm) | M ³/HR | CFM | |
| Flange Type | 610 × 610 × 25 | 2000 | 1180 |
| Flange Type | 610 × 610 × 50 | 3000 | 1770 |
| Flange Type | 610 × 610 × 25 | 2300 | 1360 |
| Flange Type | 610 × 610 × 50 | 3400 | 2000 |

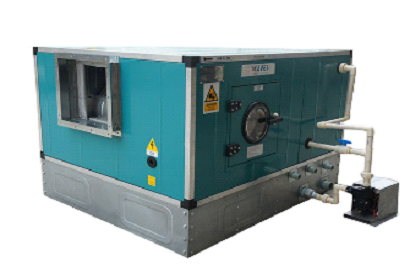

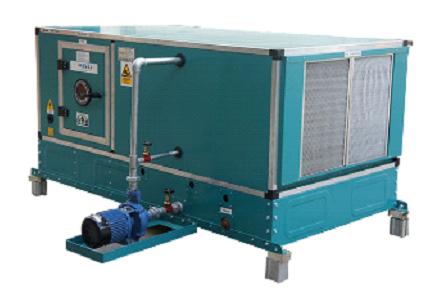

Air Washer
Introduction
An air washer is a piece of equipment that is designed to improve air quality by scrubbing the air that moves through it and adjusting humidity levels to keep the environment consistent. Air washers are used as part of climate control and air quality systems. ROOTS ENVIRO SYSTEMS Pvt Ltd offers superior quality Air Washer System, Industrial Air Washer Unit Washer and that works on the principle of cooling outside air by passing it over water-saturated pads, causing the water to evaporate into it. The cool air is then directed into the required space, and pushes warmer air out through the given vents. Air Washer Unit is a very energy-efficient means of cooling. These washers have long working life and are available in modular designs. They are equipped with an anti-microbial protection system to ensure hygienically cleaned air. Our range also offers air washer and fan and blower. The air washers are highly tested and are completely reliable.
This air washer is manufactured using excellent quality raw material and latest technology by our skilled professionals. In order to ensure quality, this air washer is stringently tested on various parameters by our experts. These products are widely acclaimed among the clients for long functional life, corrosion resistant and low maintenance cost. For ROOTS ENVIRO SYSTEMS, a client’s satisfaction is of utmost importance.
Advantages
- Low installation cost, Low running/operation cost.
- Effective in high heat generation areas.
- Easy & inexpensive maintenance.
- Healthier System - Since it works on 100% fresh air.

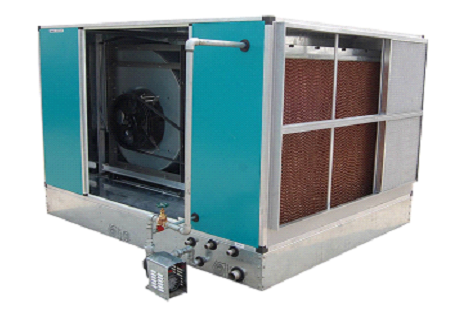

Air Washer Double Skin Type
Tired of the humidity at home? Feel sweaty day in and day out? Well, it’s time for you now to invest in a good Air Washer Double Skin Type. An air washer is basically a piece of equipment that is used to improve the quality of air. It does so by scrubbing the air that moves inside it and then adjusting the humidity levels in order to keep the environment consistent. The Air Washer Double Skin Type from ROOTS ENVIRO SYSTEMS Pvt. Ltd are designed to meet your needs and also for climate control and drastically the quality of air in the environment.
Features
- Long and functional Life
- Durable and Rugged
- Most competitive price in the market, easy on your pocket
- Made of Galvanized Steel frames of superior quality
- Frames have a minimum thickness range of 1.4 millimeter
- Multi slope S.S-304, Aluminum or G.I. drain pan which will ensure that there is proper drainage of condensate at all times.
- It has an induction motor which is the TEFC Squirrel cage type, foot mounted , IP 55 AC 415 V , 50 Hz , class F ; in 3 phase
- Common frame for blower and motor.
- Monoblock pump set 1/3 phase delivery head 6-48 Meter .
Industrial Air Washer
To meet specific industrial need of our clients, ROOTS ENVIRO SYSTEMS Pvt Ltd. manufactures and exports a range of high quality Air Washer (Evaporative Cooling Unit) or Industrial air washers. Simply used for cleaning and cooling the warm and moist air that enters into these systems to a level where it meets dew point when come in contact with refrigerated water. These units help in minimizing the moisture content of air and making them fresh from its actual content. These products are widely demanded by the clients for their hassle free performance and durability. Besides, one can get these products at reasonable rates.
Features
- Strong body construction which also makes it durable.
- These products have a sturdy make and they are non-corrosive in nature.
- These Humidification Systems are highly light in weight.
- Our ventilators are acknowledged for their simple installing. This ventilator is highly resistant scratch.
- The roof sheets are manufactured using innovative technology and high class machines.
- Our eco friendly Industrial Air Washer is applicable for effective cooling through a natural process and provide fresh ambiance.
- The offered washer is manufactured is using premium grade material and ultra-modern machines in adherence to set industry norms.
- The air washer can be operated by direct drive or driven by a belt. Made using superior quality stainless steel, mild steel.
- Compact pre-fabricated design to take less space, consuming only 40% of conventional systems.

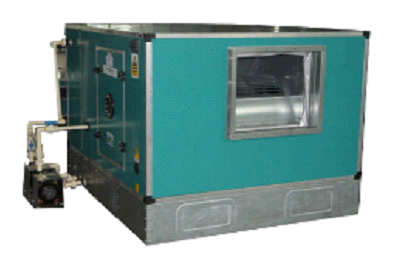

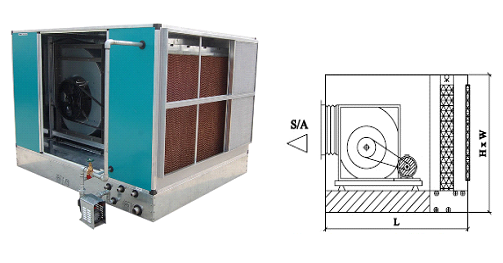

Evaporative Cooling Unit
Evaporative cooling is a simple, cost-effective method for cooling indoor spaces. However, depending on the climate where you live, evaporative cooling might not be the most effective cooling option for you. In order to cement our reputation in this domain, ROOTS ENVIRO SYSTEMS Pvt. Ltd. is instrumental in manufacturing, exporting and supplying a broad range of Evaporative Cooling Unit. These units are currently in use in a variety of evaporative cooling applications such as generator rooms, gas turbine intakes, industrial cooling of hot spots and hot zones, comfort cooling, commercial agriculture to name a few. Our products are made using premium raw materials and latest methods of production, which assures durability and efficient performance. Highly demanded for its high quality and efficiency, this unit is available in several specifications as per the demand of our clients.
Features
- Single and Double Skinned Construction
- Common base frame for Motor and Blower
- Multi slope S.S-304, Aluminium or G.I. drain pan ensures proper drainage of condensate
- Microbe filter along with primary filters are offered along with these products
- Evaporative cooling pads make: HUTEK or Munters and also can be provided as per specification of a client
- Spray type humidification systems are fabricated out of G.I/ M.S. Header and Brass/PVC Nozzle
- Perforated sheet is also provided in spray type humidification systems to ensure proper distribution of air thought out the humidification chamber
- We use PVC /G.I Eliminators to ensure that no water is carried away to Blower section and further to duct system
- These evaporative air coolers are highly appreciated by our clienteles for its excellent quality, robustness and premium functionality of providing cool air especially during hot summer season.
- Our evaporative air coolers are very easy to control and provide low noise and excellent energy efficiency for long lasting use.
- It is very economical.
Single Skin Air Washer
In a very hot environment, what better way to cool than use an air washer? , ROOTS ENVIRO SYSTEMS Pvt Ltd has the best option for Single Skin Air Washer. They can be used for a variety of reasons and can provide perfect and comfortable conditioning for office and home. They are suitable to be used in hotels, malls, garment units or even other factories which need constant cooling. Most engineering and industrial units also use these single skin washers.
With a very rich experience in the industry, , ROOTS ENVIRO SYSTEMS Pvt Ltd. can give you the best Single Skin Air Washers at the most competitive prices in the market.
Features
- It introduces 100% fresh air unlike ACs which circulate the old air
- They can continue cooling the area without needing the doors and windows to be shut
- The installation costs are 70% lesser than the normal AC costs
- Also the running costs of a Single Skin Air Washer are also 90% less than that of an AC.
- It is made of cast iron and does not need any kind of insulation
- The fan is Centrifugal Fan-Forward which has a Curved/Backward Curved design more effective.
Contact Us
Mr Harsh Nath Shah
- Designation: Managing Director
- Mobile Number: +919330871531
- Email: hns@rootsenviro.com
Mr Shivendra Shah
- Designation: Director - Operations
- Mobile Number: +919836403800
- Email: sshah@rootsenviro.com
Address of Office
- Address: 26/2, Snuff Mill Street. Kolkata – 700 056. West Bengal, India.
- Phone: 033- 2544 2173
- FAX : 033- 2544 2173
- Mail: info@rootsenviro.com
hns@rootsenviro.com
jshah@rootsenviro.com - Mobile: 09330871531, 09748341111
- Website: www.rootsenviro.com
Address of Workshop
- Address: Sadarhat, P.O. Karnamadavpur, Kolkata- 700 113. West Bengal.
- Mail: sshah@rootsenviro.com
- Mobile: +919836403800
Valued Clients
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
 |
Career
Believe in the potential of creative thinking to build your reputation.
Roots Enviro Systems Private Limited is growing and we are looking for experienced, talented and ambitious professionals to join our team. If you want to work in a professional work environment with entrepreneurial spirit and limitless possibilities, then we invite you to apply for the career opportunity at Roots Enviro Systems Private Limited. We seek professionals who are team players and subscribe to a high ethical standard.
We are looking for these skills:
- Excellent communication and relationship building skills.
- Time management skills.
- High levels of motivation and persistence.
- High ethical standards.
Interested candidates, mail your Resume & Personal Details to "career@rootsenviro.com".
